by Tommy H. Thomason

Friday, July 22, 2016

Grumman F8F Gunsight

According to the F8F Pilots Handbook for all Bearcat types, "Early model day fighters were equipped with a Mk 8 Mod 6 (gunsight), while later models are equipped with a computing sight unit Mk 8 Mod 0".

The Mod 6 was a simple fixed reticle sight that projected deflection rings and cross hairs on the windscreen.  The Mod 0 was a gyroscopically controlled range-finding sight that provided lead; it projected cross hairs and ranging images on a reflector glass mounted on the gunsight itself.



I don't know that the change in the gunsight had anything to do with the change in the windscreen angle of the -2 (see http://tailspintopics.blogspot.com/2016/07/grumman-f8f-bearcat-windscreen.html) but it's possible that it was necessary to provide clearance between the Mod 0 sight and the center panel of the windscreen.

Dave Collier adds the following background:  Most of the F4U-4s that I worked on had Mk 8 Mod 6 Sight Heads. Unfortunately we had two aircraft which were equipped with the Gun Sight Mk 18 Mod 6 System which used a Sight Unit Mk 8 Mod 0 that was part of the Aircraft Fire Control system (AFCS) Mk 6 Mod 0. Because this system was still classified “Top Secret” in 1954-55 we had to post an armed guard on the planes whenever the flight line was not in operation. I did not enjoy the winter nights carrying a shotgun to protect the planes. In 1956 we received AD-5Ns which had Mk 20 Mod 4 sights. He also referred me to this interesting website: http://www.aircraft-gunsights.com/usn-sights/

Grumman F8F Bearcat Vertical Tail

Although there are numerous detail differences between the -1 and -2 (see http://tailspintopics.blogspot.com/2010/12/f8f-bearcat-1-vs-2.html), the tail (and now the windscreen, see prior post) is the most obvious.

Note that the -1 is an early-production F8F provided to NACA for flight test and does not have the turnover structure behind the pilot's headrest; the -2 is the -2P photo reconnaissance variant.

For years I've used this Grumman drawing from the F8F SAC to illustrate the difference between the -1 and -2 vertical tail.
Upon closer examination recently, I was chagrined to discover that the difference in height depicted (as opposed to dimensioned) was incorrect. Instead of the -2 tail being 12 inches taller, it scaled to be only about eight inches taller. (As a result, the 1/72 Monogram kit's tail is not quite halfway in height between the -1 and -2 but a little less that halfway.) There was also no difference between the trailing edge of the rudder and the trim tab of the -2 versus the -1, which is now obvious to me in pictures.

The larger tail was not just the result of the -2 having a somewhat higher horsepower R-2800. The -1 Bearcat was in need of more directional stability at small side-slip angles and had marginal directional control during a waveoff. BuAer therefore requested NACA to do an evaluation of vertical tail modifications. These are sketches of the original vertical tail and two variations that were flight tested.

This is the test F8F-1 with the configuration 2 vertical tail:
Note the kludge to increase the chord of the rudder and the lack of the dorsal-fin fairing.

NACA recommended configuration 3 (larger rudder and trim tab) with the addition of a small dorsal-fin fairing like the F8F-1's.

I had assumed that Grumman just added 12 inches to the bottom of the existing F8F-1 vertical fin to save engineering and tooling cost and retained the -1 aft-spar attach structure. However, doing that made the leading-edge angle wrong compared to pretty good pictures taken from the side. It then occurred to me that Grumman probably wouldn't want to change or kludge the location of the attachment of the vertical fin's front spar, which meant that the -2's leading edge had to come down at a steeper angle.

This is the resulting pretty-good approximation of the difference between the -1 and -2 vertical tails (the dorsal fairing is a not so pretty-good an approximation). Note that the angle of the -2's trailing edge changed below the trim tab to be steeper so that it terminated in the same place as the -1's.


Wednesday, July 20, 2016

Grumman F8F Bearcat Windscreen

One more time - all these years looking at something and I didn't notice the obvious. The F8F-1 and F8F-2 had slightly different windscreens...
(Ignore the fact that the F8F-1 does not have the turnover structure behind the headrest; the windscreen is still representative.)

My guess is that the change was an attempt to help increase the Bearcat's top speed when the change to a more powerful R-2800 was made or perhaps offset the drag of the taller fin (more on that later) and carrying approximately 600 lb more weight. However, it might have been necessary because of the change in gunsight on the -2 (see http://tailspintopics.blogspot.com/2016/07/grumman-f8f-gunsight.html).

Because of incidences of cracking, some Bearcat canopies subsequently received an additional frame a little more than halfway back on the sliding section. This reportedly began after 1949 and included both -1s and -2s.


Thursday, July 14, 2016

Detail & Scale F2H-1/2 eBook

Bert and Rock's latest eBook is now available and a must-have for the serious modeler looking forward to the forthcoming Kitty Hawk 48th F2H-2/2P kit. Visit the Detail & Scale website at www.detailandscale.com to download it for only $9.99. And it's not just for Kindles and Kindle-compatible devices: Bert also created a Mac version that can be downloaded via iBooks, which is what I do.

What you get in this instance is almost 300 pages of text, photos (many in color and some not previously published), and detailed illustrations covering the five variants of the early Banshees: the F2H-1/F2H-2/F2H-2B/F2H-2N/F2H-2P, and a review of available kits, detailed and illustrated, and aftermarket items that matches the best that I have ever seen. (The Kitty Hawk kit will be added in due course, one of the advantages of an eBook; Part 2 will cover the -3 and -4.)

Fully covered and well illustrated are configuration differences including the various cockpit layouts, paint and markings,  operational use summary, and squadron assignments. Attention to detail is paramount, as in noting (which I did not know) that the tip tanks were interchangeable from left to right, not an obvious conclusion since they hang off the wingtip at an angle rather than extending straight out or being hung directly underneath. Also little known is that the F2H-2 Banshee's wings could not be folded or unfolded with fuel in the tip tanks since the F2H-1 did not have them and the wing-fold structure and actuator were not redesigned to accommodate a tip tank loaded with fuel.

One telling example of the research involved is this book is that it does not make the oft-repeated error of stating that the production F2H-1 was shorter than the F2H-2 but correctly identifies the XF2H-1 as having the shorter fuselage but not the production F2H-1.

 If you are reluctant to make the move to eBooks as I was, you need to reconsider and try one, certainly one as user-friendly as those from Detail & Scale. For a synopsis of what you'll get and the benefits, go to http://www.detailandscale.com/detailandscale_digital_publicationss.html.


Sunday, July 10, 2016

F-111A/B Ejection Seats

The first F-111s, both As and Bs, were completed before the McDonnell-furnished escape module was qualified. The escape modules for these airplanes were therefore equipped with ejection seats. These were Douglas Escapac seats, probably Model IC. Note that they have two large pull rings for the face curtain rather than just a single one. My guess is that this modification was made to the seat at least in part because Grumman pilots were using a Navy HGU-20/P "clamshell" helmet.
Although it appeared to be a pressure-suit helmet, it was not (the F-111 couldn't get that high anyway). It did away with the oxygen mask and theoretically would be unlikely to come off in a high-speed ejection.

The ejection seat was much wider from front to back than the seat back in the capsule. Simply mounting the seat to the rear bulkhead of the capsule would have resulted in the control stick being in the pilot's solar plexus and him having to move the throttle with his elbow. In order that the he be properly positioned with respect to the controls, the seat's rails were located aft of the rear frame of the side hatch.

A panel, identified as the "overhead structure", therefore had to be added to the top of the fuselage to allow the ejection seat a clear pathway out. The edge of this panel is apparent in the picture above and in the following picture of an escape module which is to be completed with ejection seats.



The emergency canopy-removal sequence was complicated.
It was used both for jettisoning the canopy and as the initial step in the ejection process, which was automatically initiated by either crew member pulling the seat's face curtain or alternate ejection handles and had to be completed before seat ejection could occur.

The canopy removal and ejection seat operation were qualified in a sled test conducted by McDonnell. (See https://www.youtube.com/watch?v=9gyIhOGyGA8)

The following still from the sled-test cockpit camera shows the canopy as it is being jettisoned prior to the seats going out.

Grumman F8F Bearcat Redux


My prior posts:

http://tailspintopics.blogspot.com/2010/12/f8f-bearcat-1-vs-2.html

http://tailspintopics.blogspot.com/2014/07/f8f-bearcat-wheels-and-wheel-wells.html

http://tailhooktopics.blogspot.com/2013/02/f8f-formation-lights.html

http://thanlont.blogspot.com/2011/02/conception-of-f8f-bearcat.html

http://thanlont.blogspot.com/2012/10/f8f-safety-tipsit-seemed-like-good-idea.html

Wednesday, July 6, 2016

See You at the 2016 IPMS National Convention?

I'll be hanging out there (see http://calendar.ipmsusa3.org/event/2016-ipmsusa-national-convention) at the Kitty Hawk/Panda booth, tables 508/515/516. I'll have my books and monographs (http://tommythomason.com/) available for purchase and will also be happy to sign any that you have purchased elsewhere. There is a possibility that Glen will have test shots of the F2H-2 to fondle:

I'm also hoping to get a first look at the latest Detail and Scale digital publication:

Bert and Rock's table, 514, will be just around the corner.

On Friday, 5 August, at 1 PM, I'll be giving a presentation, Revolt of the Admirals, in Congaree A.

I hope to see you.

Saturday, July 2, 2016

Non-Aerodynamic Wing Fences

One trivia question concerns the small fences of some early Navy carrier-based jets with a swept leading edge on the wings. They are clearly too small to have any aerodynamic effect. Their purpose instead was to insure proper engagement of the barricade on straight-deck carriers in the event that the Davis barrier did not function as designed. (For a discussion of the two types of barriers versus the barricade, see http://thanlont.blogspot.com/2008/10/davis-barrier-redux.html.)

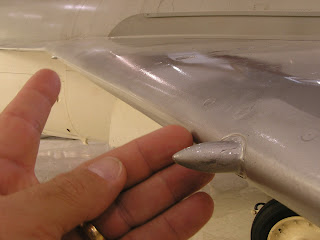

There was concern that the vertical straps would slip along the leading edge of the left and right wings differently before snagging, which would result in the airplane being yanked to one side or the other (into the island or off the deck). As a result, small fences (or protruding pins in the case of the F11F Tiger) were added along the wing's leading edge.

The F4D Skyray provides an early example. There were three fences along the wing leading edge as shown in these Bill Spidel photos.:


(Note that the leading edge slats would normally be extended.)

These small fences were also present on the A4D Skyhawk, F3H Demon, and the FJ-2/3/4 Fury (the FJ-2 was introduced about the same time as the barricade and did not initially have them; neither did the early FJ-3s. However, at least some (probably all) FJ-2s were retrofitted with them, as were all FJ-3s not originally delivered with them).

As previously mentioned, the Grumman F11F Tiger used pins instead of fences as shown in this  Don Hinton photo:

The F7U Cutlass didn't have these fences, probably because the leading-edge slats were extended mechanically rather that aerodynamically, providing a snag point on each wing along with the gap between the fuselage and the engine inlet.

The Grumman Cougars did not have the small scabbed-on fences either, probably because there was a large aerodynamic fence on the inboard section of the wing and a protrusion at the wing tip that provided snag points.

This December 1953 F9F-6 Cougar encounter with the early barricade appears to have been somewhat compromised by the fact that the Davis barrier only engaged the right main landing gear, causing the airplane to begin to slew around to the right before it got to the barricade.
Note the location of the upper suspension strap of the barricade, fortunately behind the canopy and not in the cockpit;  the prospect of eating the suspension strap in a barricade encounter resulted in many pilots opting to land with the canopy closed.
